Quick Overview
- Multi-purpose GoTo mount
- Alt-Az, equatorial or dual-OTA configurations
- 30 pound payload capacity

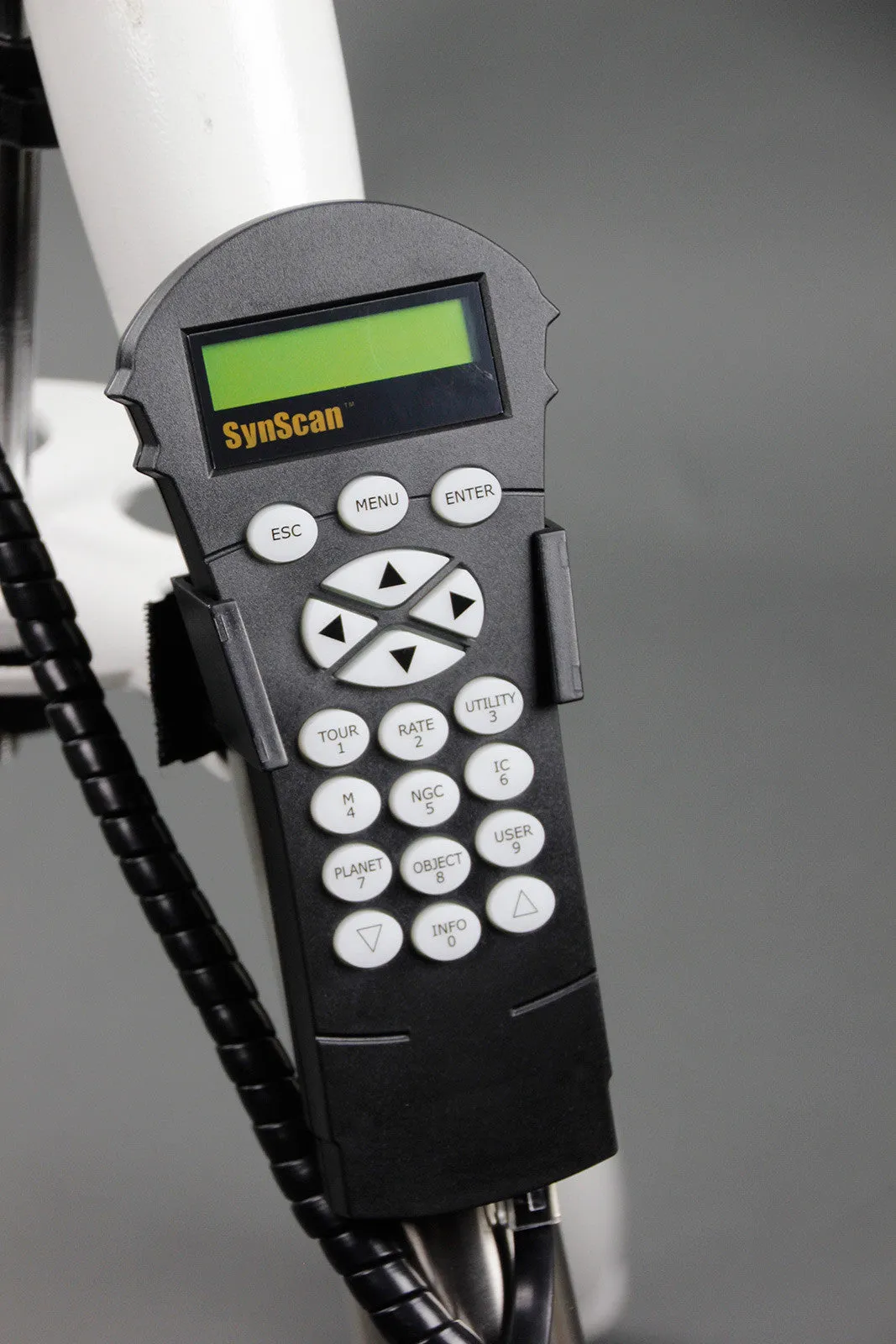

- SynScan hand controller OR SynScan Pro app and Wi-Fi adapter, both with 42,000 object database
- Counterweight shaft extension
- Two 7.5 pound counterweights
- Secondary mounting saddle for dual-OTA configuration
- Steel tripod
- DC power cord

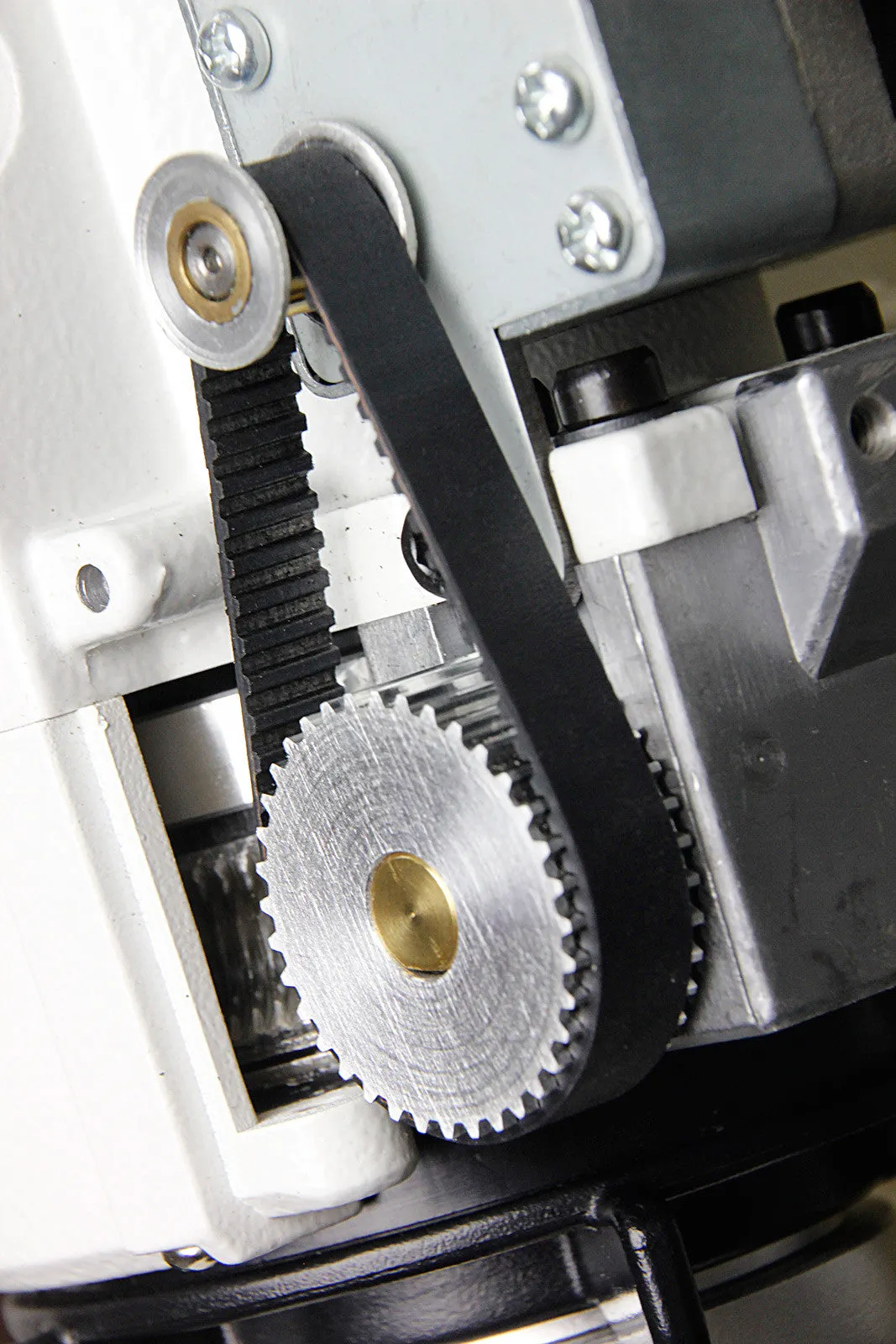

Whisper-Quiet Belt Drive
Belt drive technology has been, up until now, found almost exclusively on prohibitively expensive high-end mounts
Dual-Encoder Accuracy
0.5 arc second accuracy delivers spot on tracking for long-exposure astrophotography
Alt-Az, EQ or Dual Scope Modes
Three-way hybrid mount boasts alt-azimuth capability for general use, equatorial capability for astrophotography use and dual-OTA mode perfect for outreach

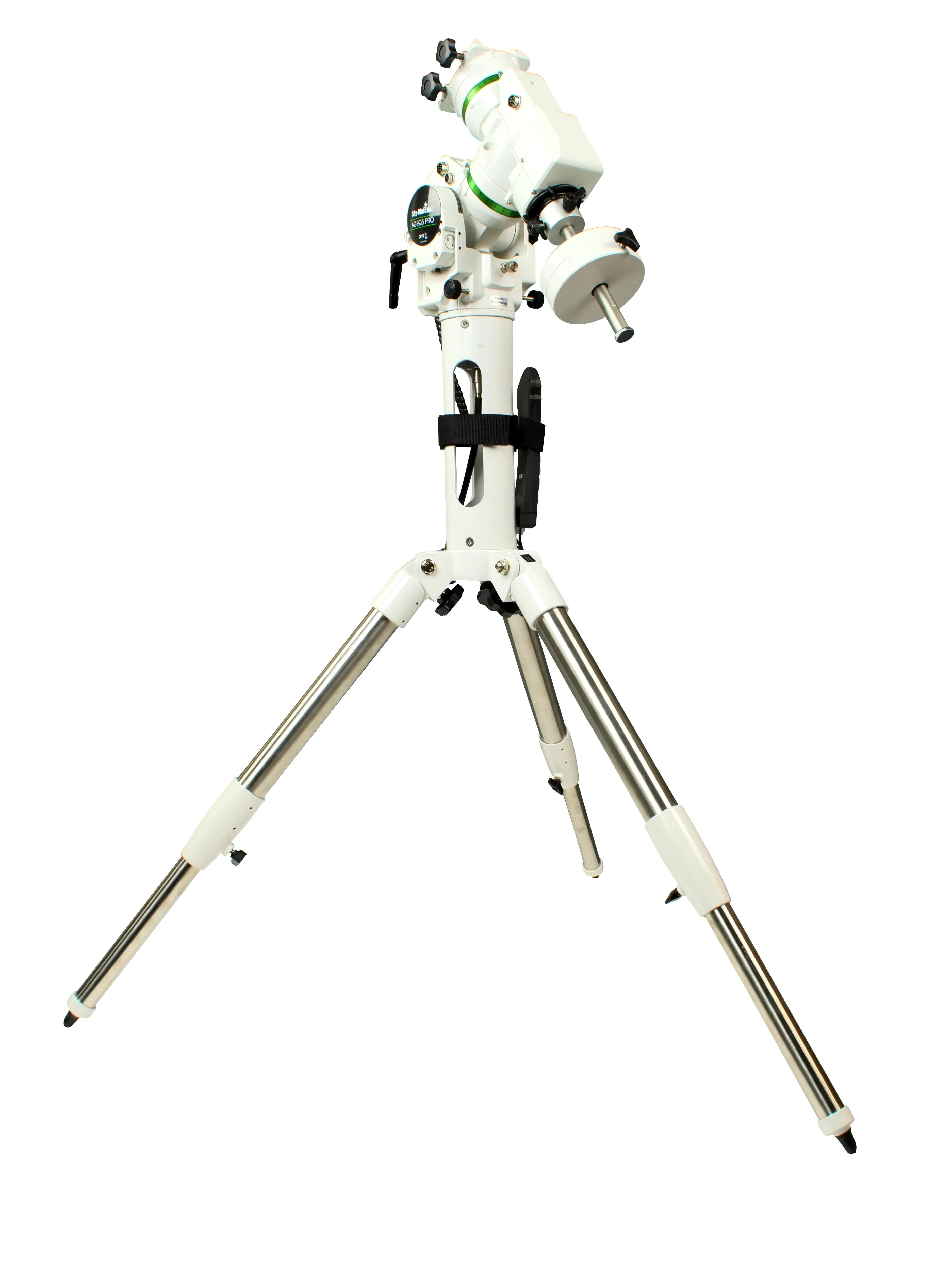

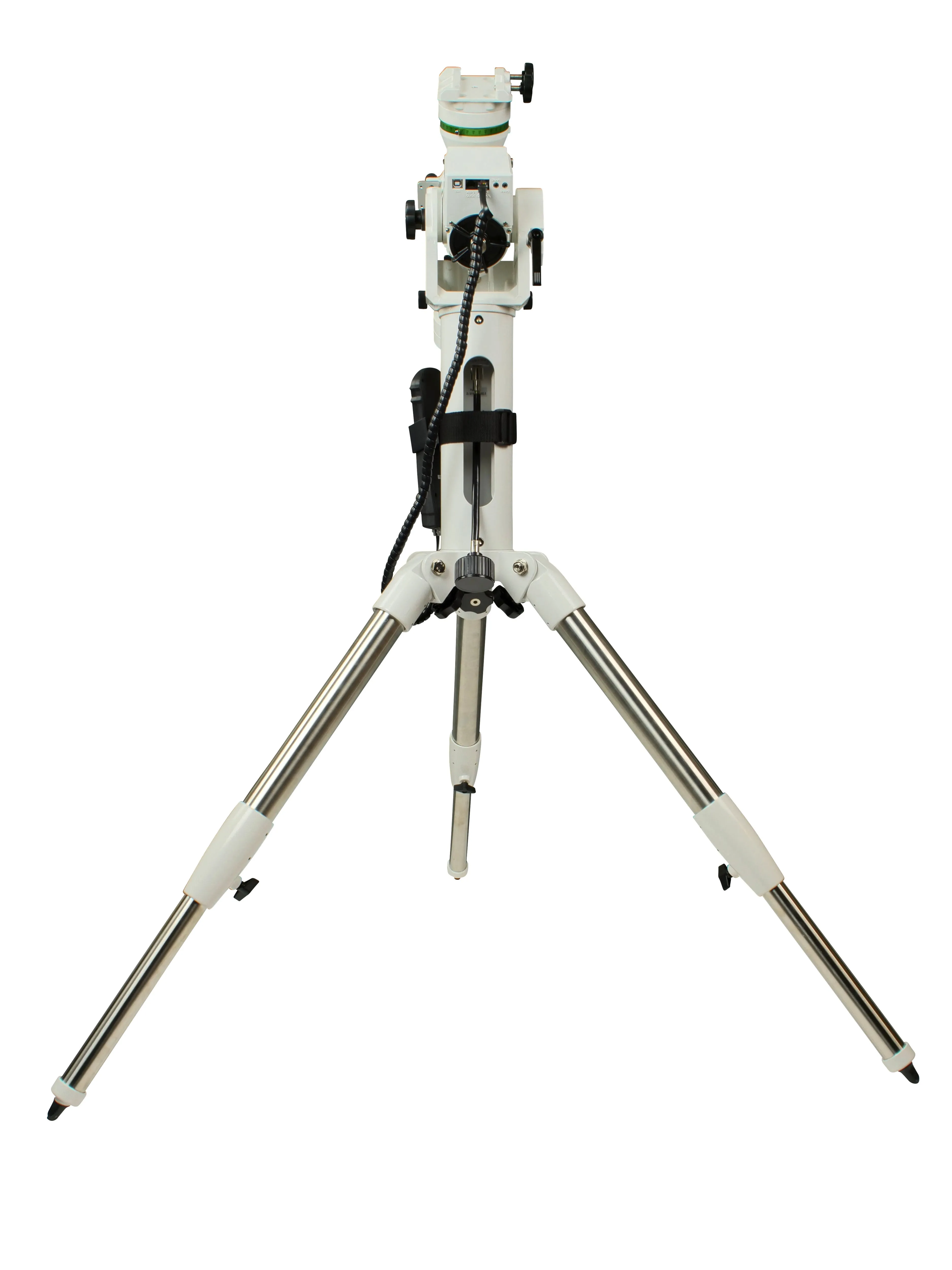

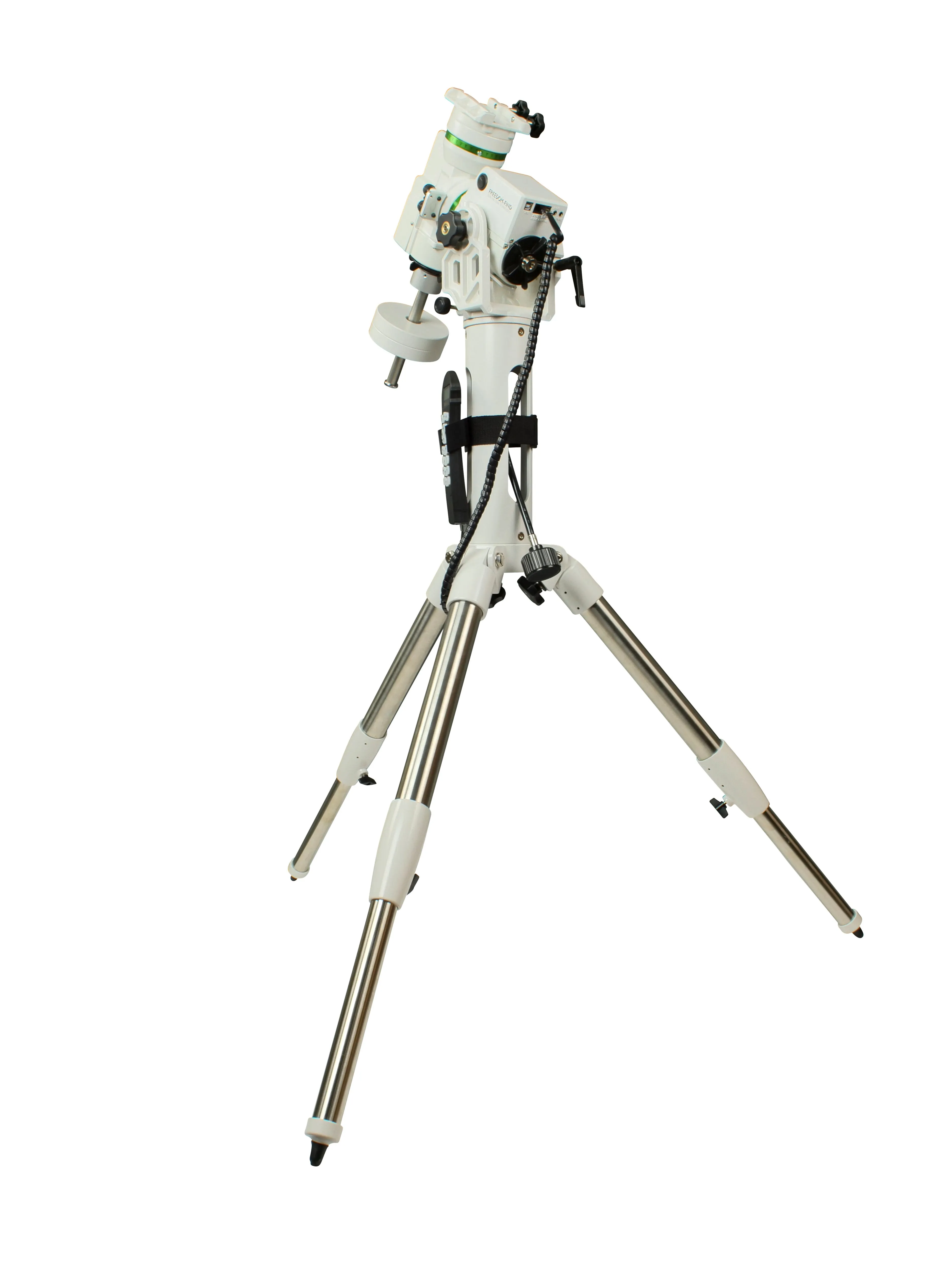

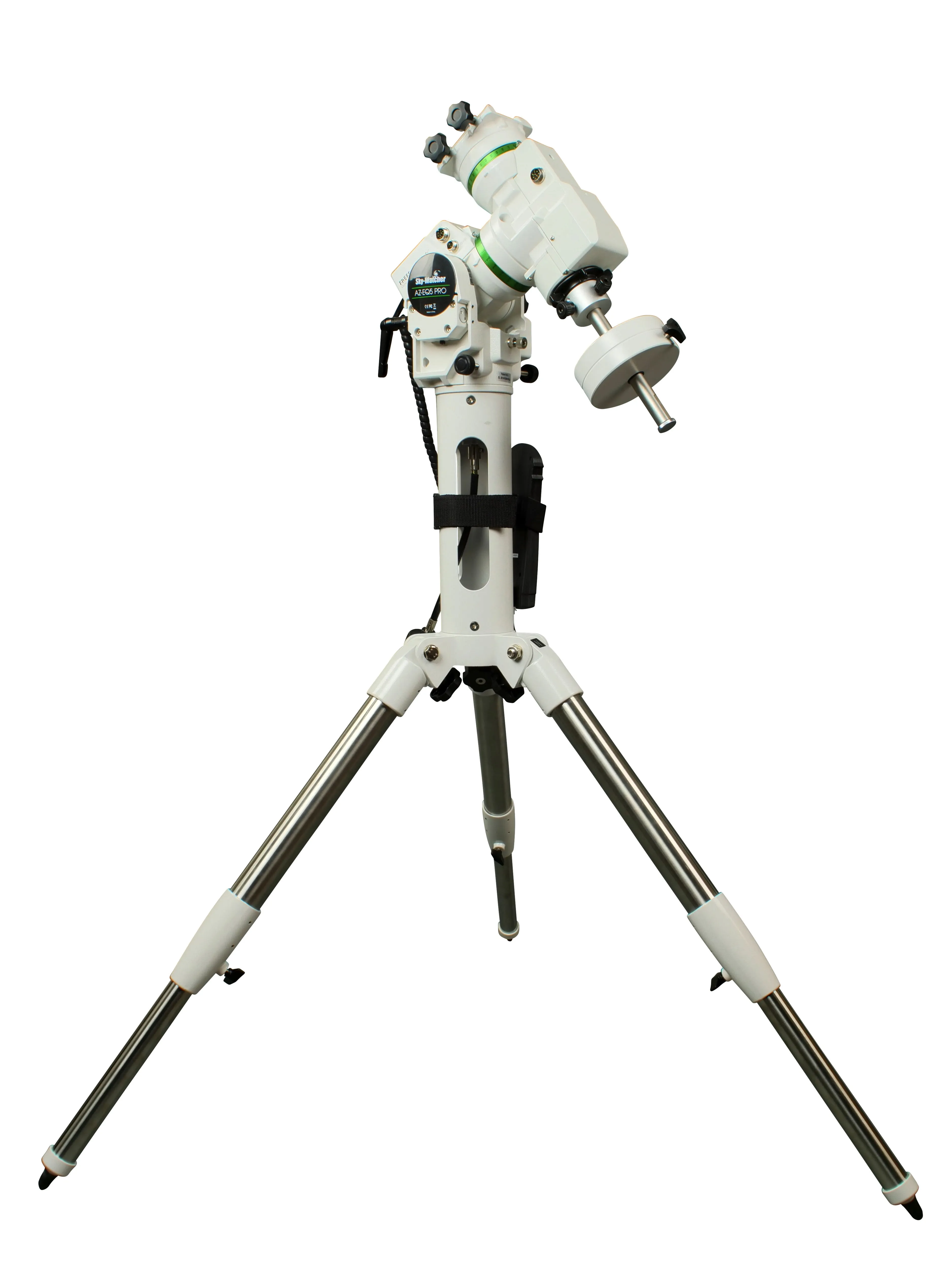

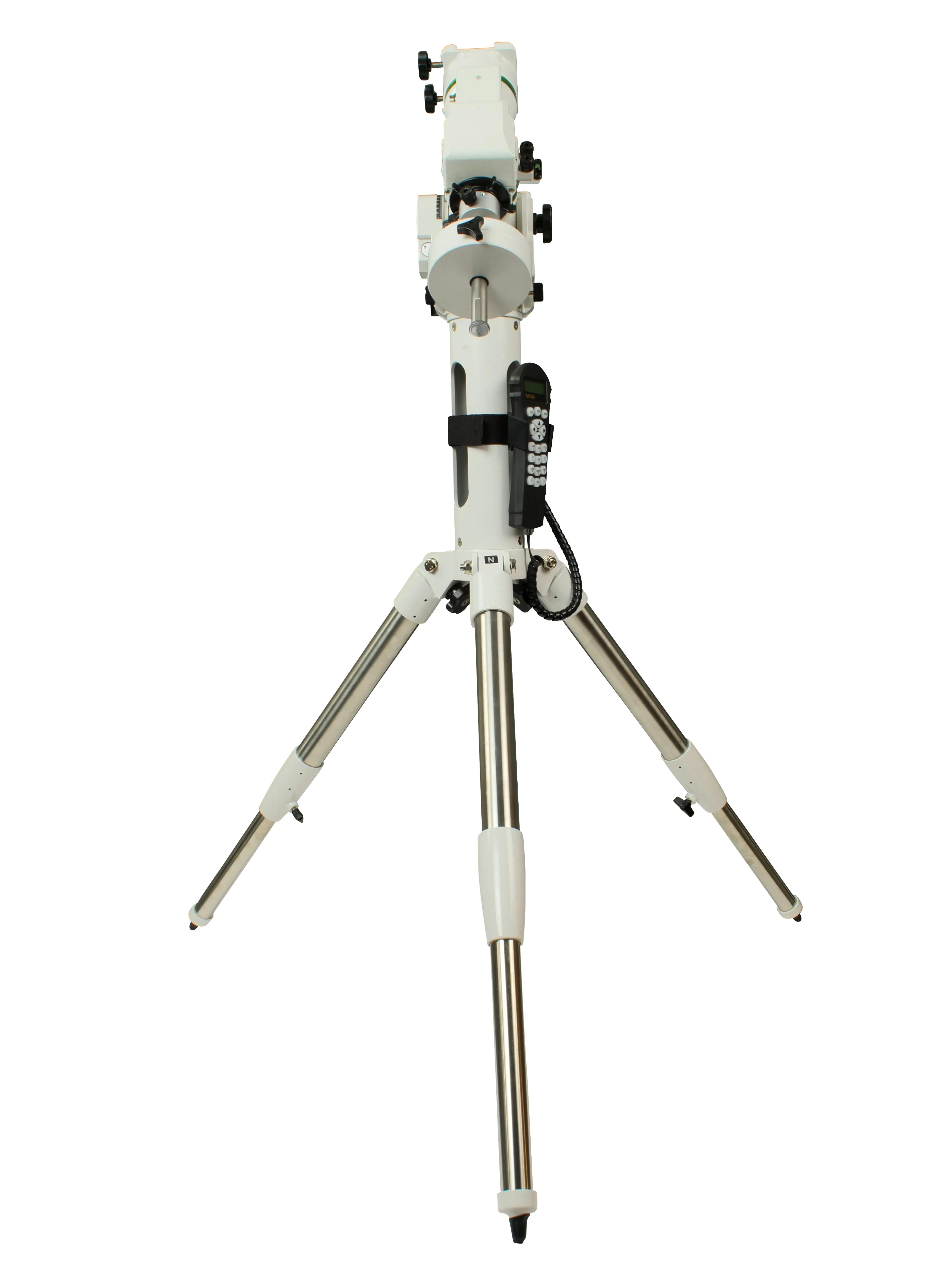

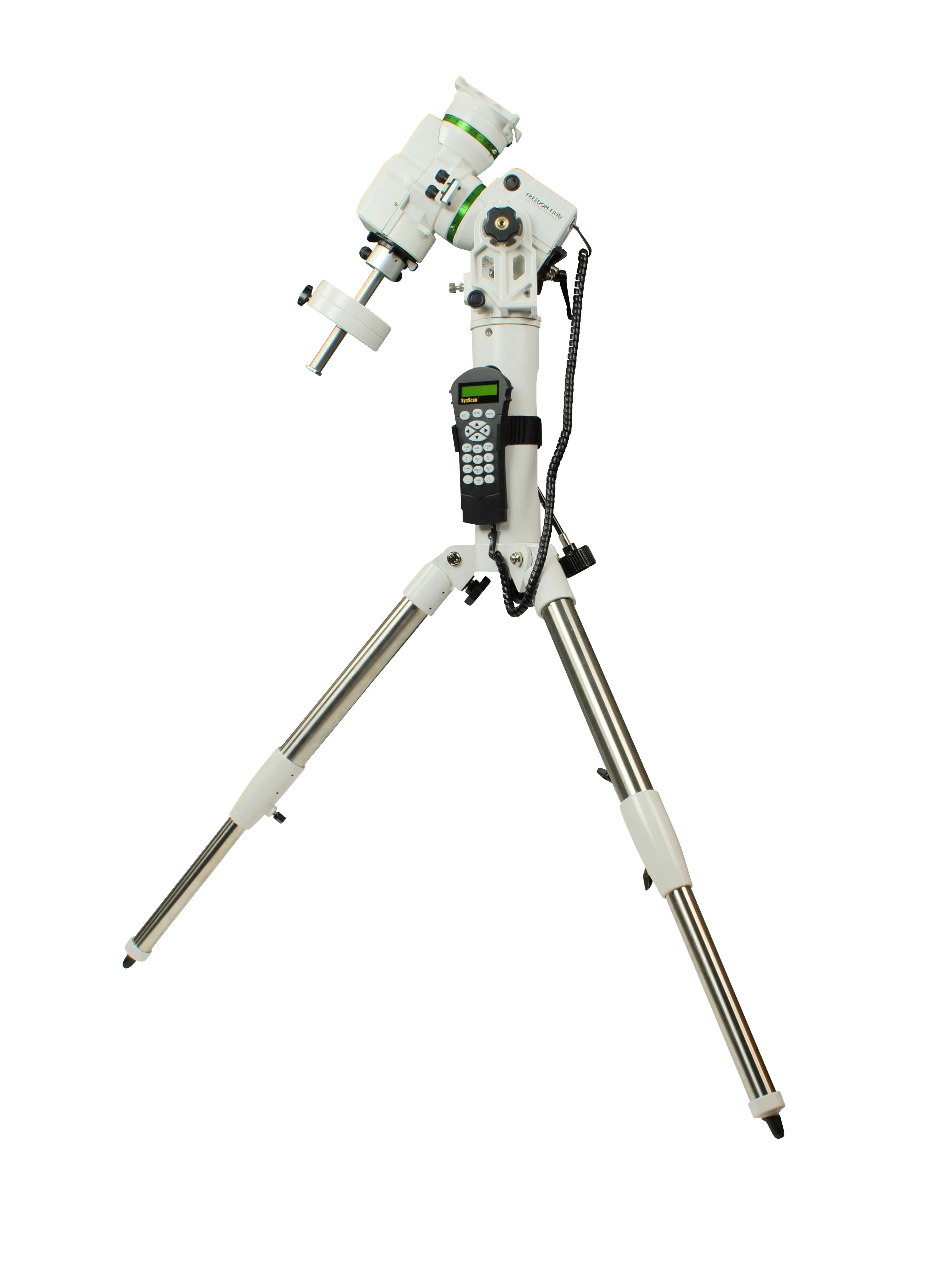

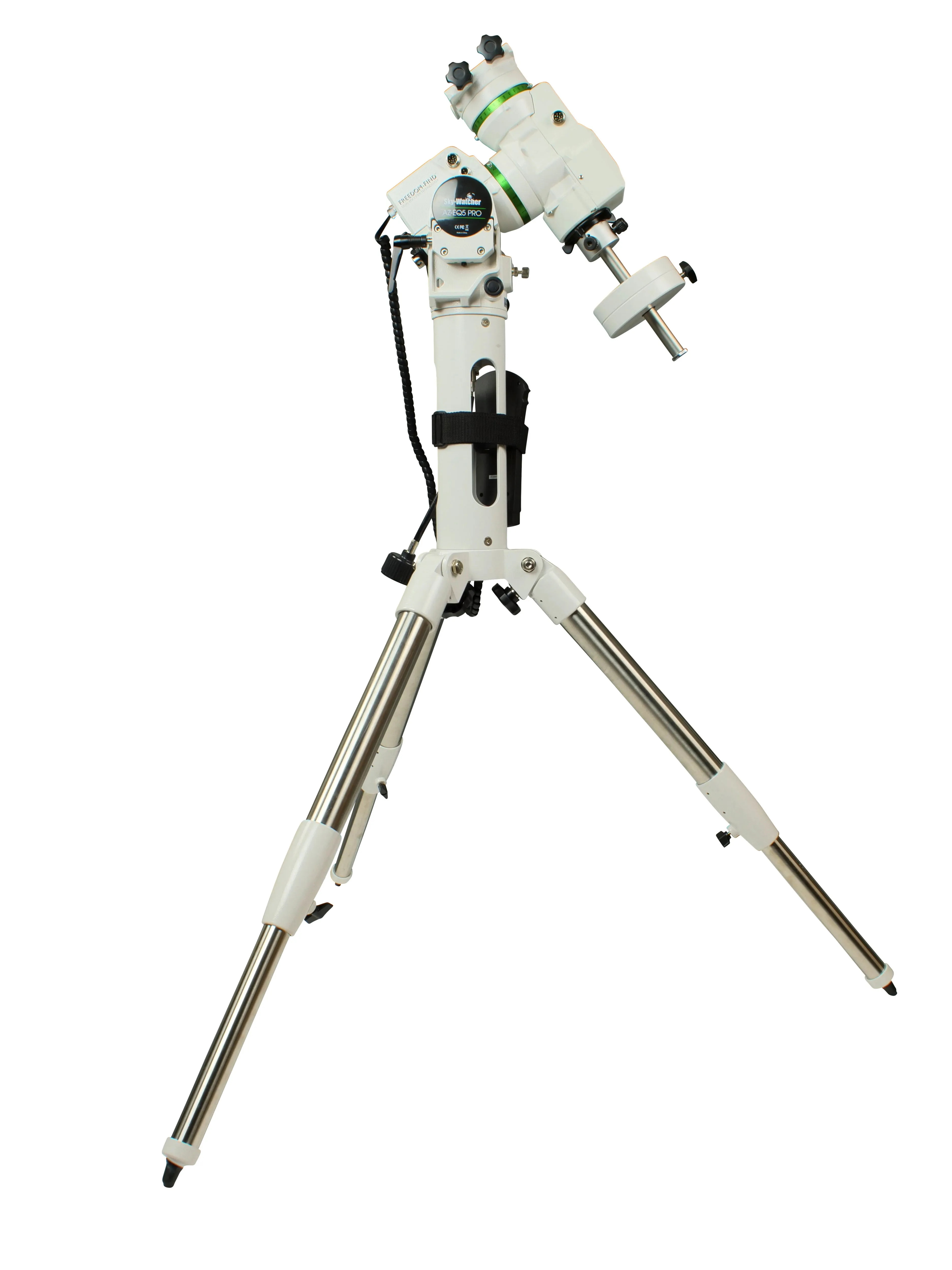

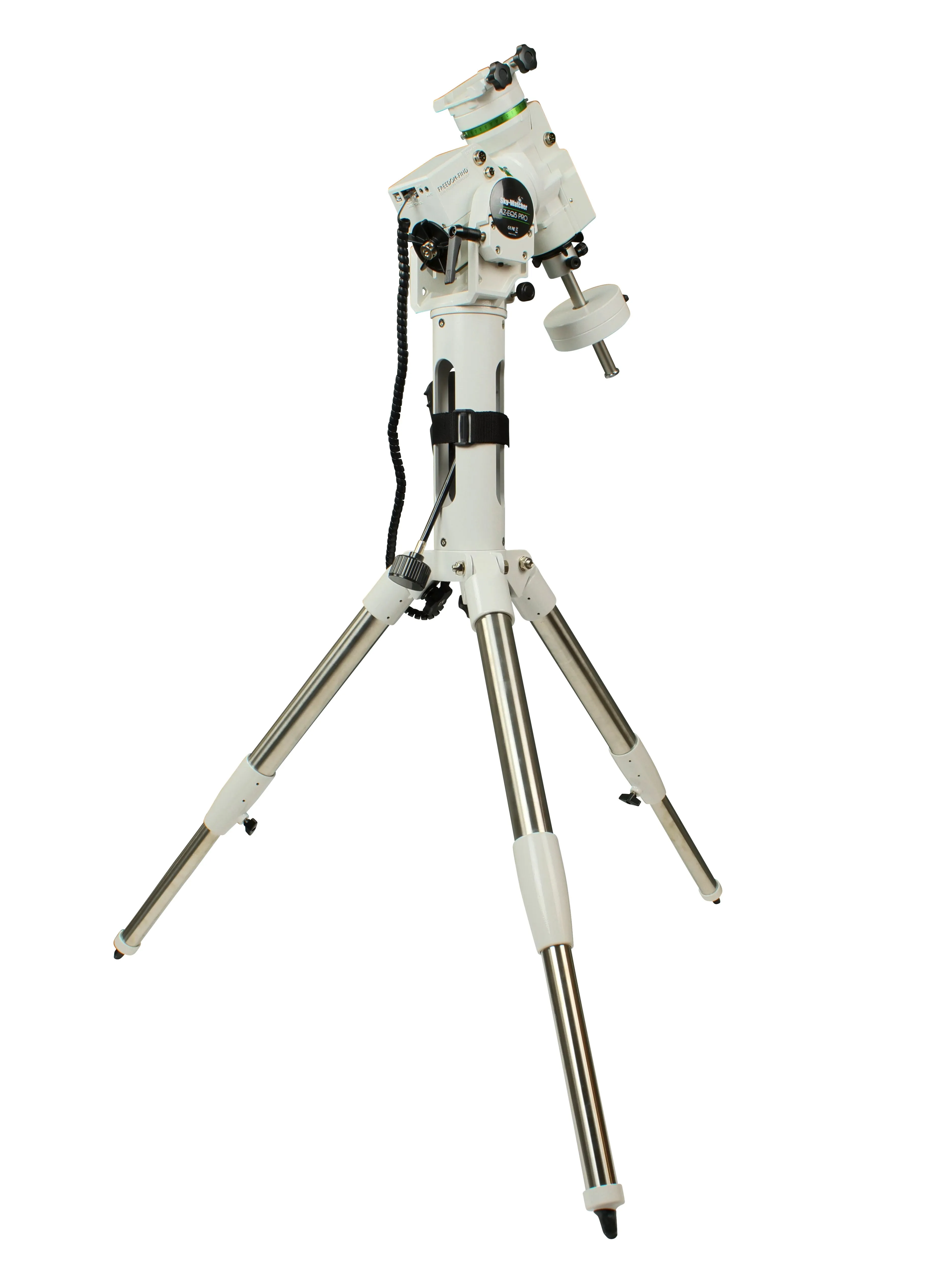

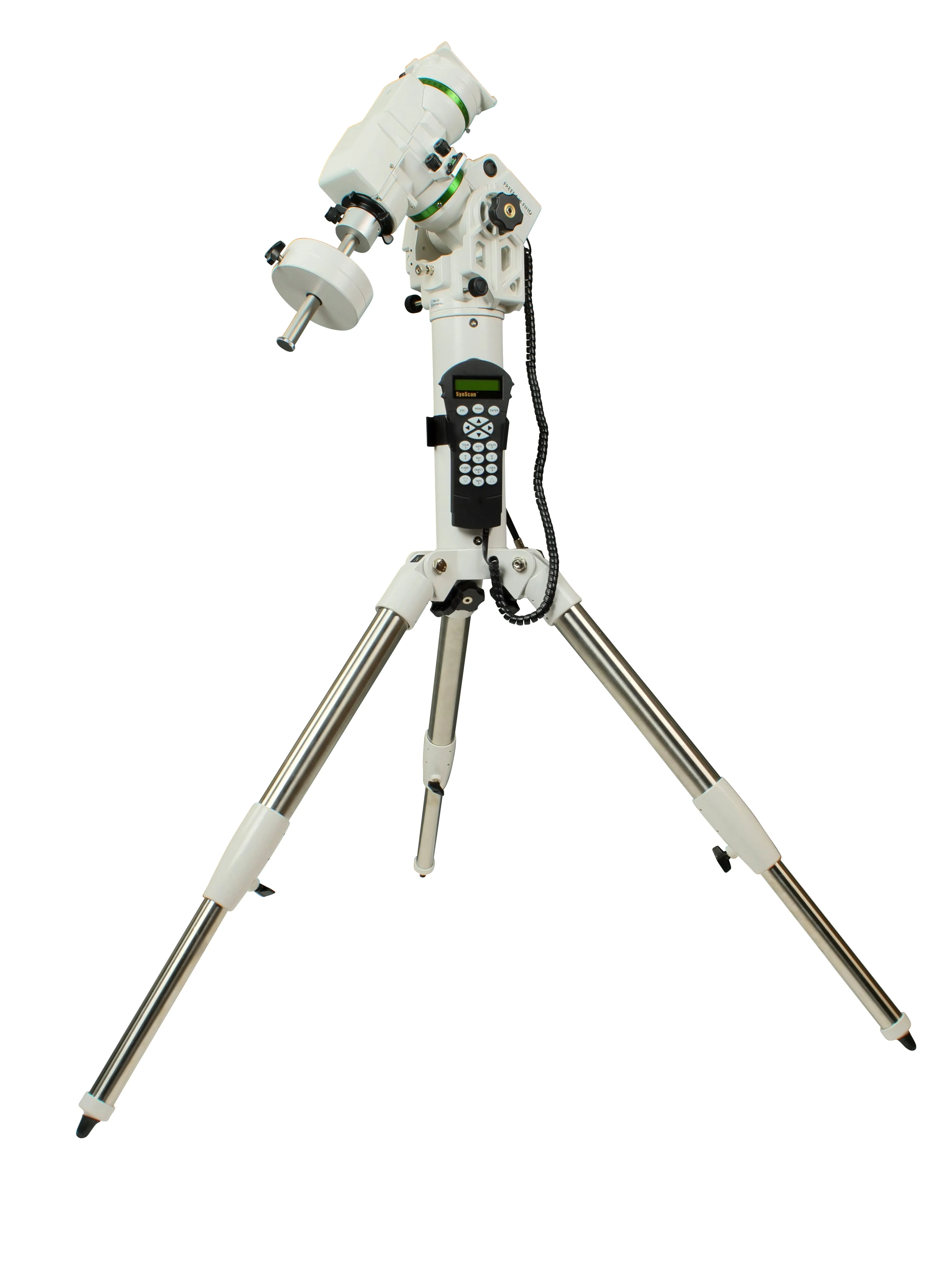

The Sky-Watcher AZ-EQ5 gives optimal stability and pointing accuracy for a wide variety of professional photo equipment. It is a hybrid mount with alt-azimuth capability for general use, equatorial capability for astrophotography use and dual-OTA mode perfect for outreach.
Stable, accurate, versatile and very portable –weighing only 33 pounds – the AZ-EQ5 is the perfect field mount. Supplied with a SynScan handset with dual AZ/EQ firmware, it can automatically find and track 42,900 celestial objects from its database.
FEATURES
-
German Equatorial/Alt-Az/dual OTA mode.
-
Permanent periodic error correction (PPEC). PPEC can be trained with autoguider or PC.
-
Belt drive – Super smooth PE curve. Low backlash, silent slewing.
-
/- 5 arc seconds native periodic error.
-
Dual shutter release control for batch exposures of astrophotography.
-
Motor controller with high torque and accuracy.
-
Includes two V-style saddles for mounting dual OTAs
-

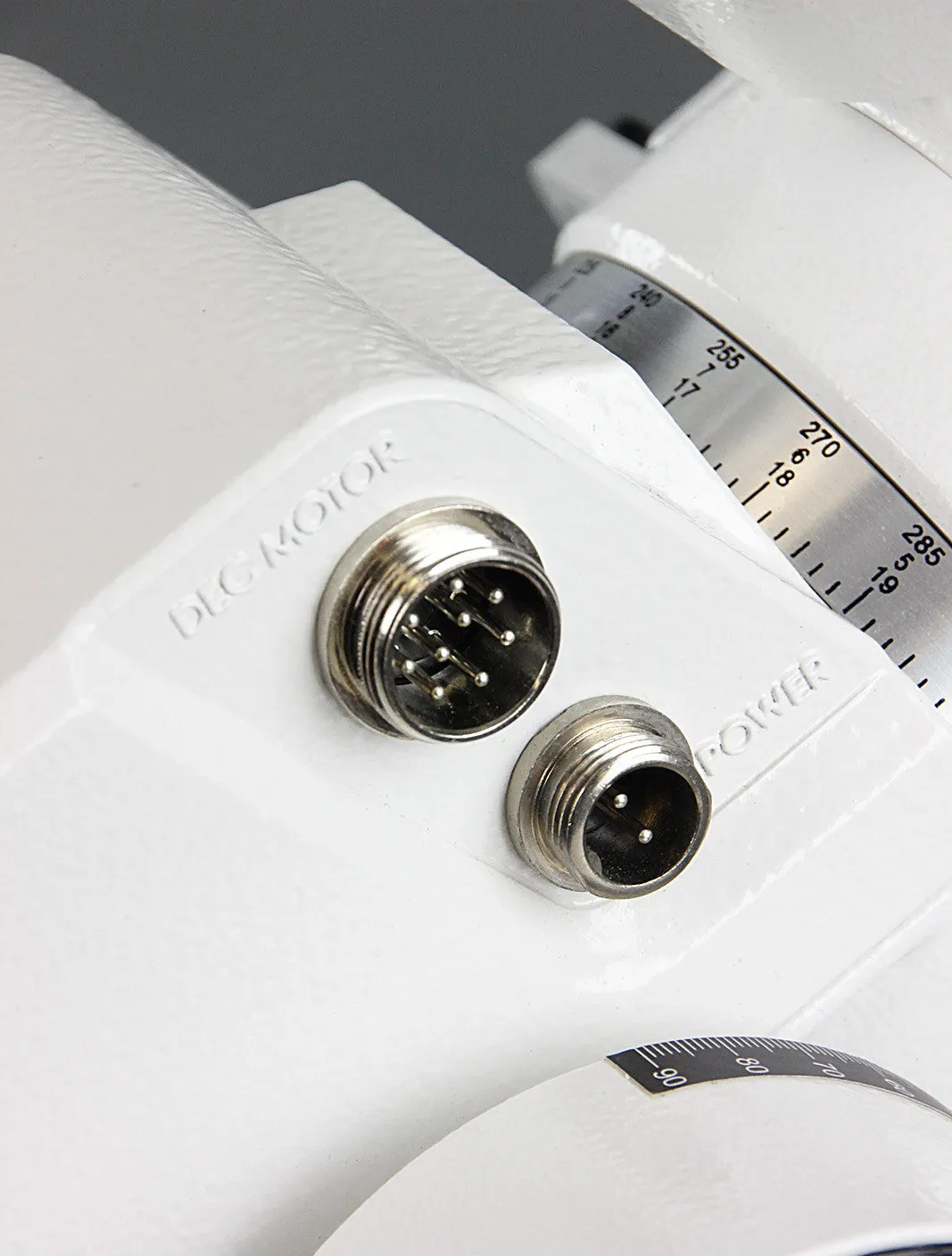

Secure-fit power supply connections.
-
Polar alignment with optional polarscope.
-
Primary axis encoder tracks the mounts position. Users can push the
mount at any time without worrying about losing the mount’s alignment.
-
Counterweight extension bar included.
-
Retractable counterweight bar.
-
Includes two 7.5 pound counterweights.
|
Model |
AZ-EQ5 |
|
Base type |
Motorized alt-az |
|
Tripod |
Adjustable height, steel tripod legs, accessory tray |
|
Power Requirements |
DC11~16V 4A |
|
Motor Drive |
1.8° Hybrid Stepper Motor |
|
Slew Speeds |
1000x, 800x, 600x, 400x, 200x, 32x, 16x, 8x, 2x, 1x |
|
Tracking Rates |
Sidereal, Lunar, Solar |
|
Tracking Modes |
Dual Axis and EQ |
|
Alignment Procedures |
One-, two- and three-star Alignment |
|
Computer Hand Control |
SynScan hand controller, flash upgradeable, OR SynScan Pro app and Wi-Fi adapter |
|
Database |
Complete Messier, NGC, IC and SAO catalogs, 25 user defined objects, total 42,900 objects |
|
Dovetail Compatibility |
V-style |
|
Mount and tripod weight (pounds) |
33 |
|
Payload capacity (pounds) |
30 |
